BUILT TOUGH FOR NZ FARMS

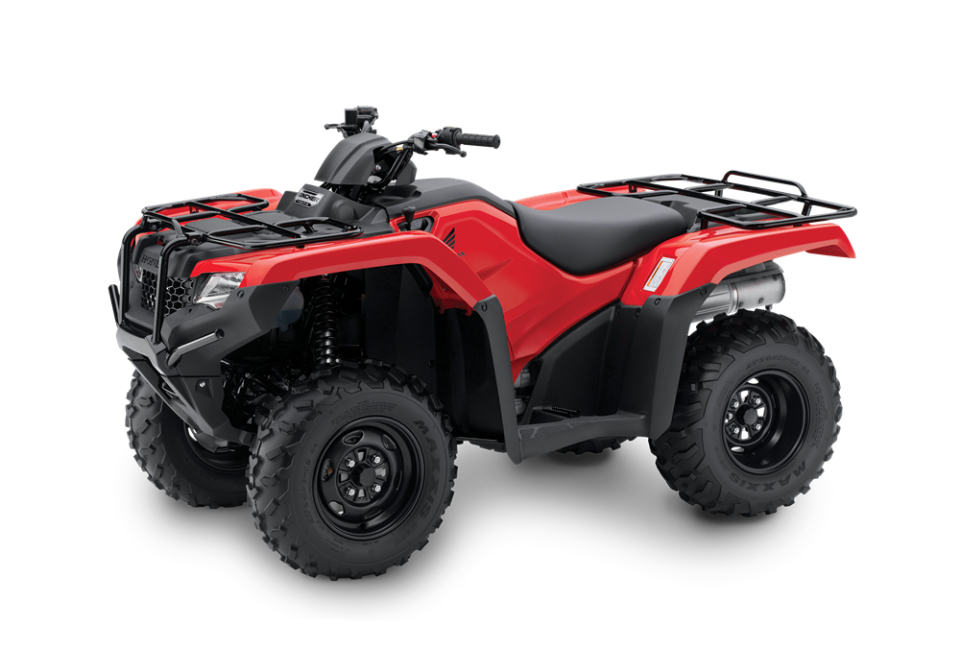

The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced manoeuvrability. The increased kickback resistance provides better all-around steering action and control over rough terrain. Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. New for this year is a storage compartment on the front of the bike and revised carry racks which provide more loading options. New guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical and capable ATV.
YOUR BIKE IN DETAIL
|Engine Type||Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke|
|Bore and Stroke||86.5mm x 71.5mm|
|Ignition||Full-transistorised with electronic advance|
|Carburetion||Programmed Fuel Injection (PGM-FI) 34mm throttle body|
|Starter||Electric with auxiliary recoil standard|
|Final Drive||Direct front and rear driveshafts with torque sensing front differential|
|Transmission||Manual 5-speed with reverse|
|Suspension Front||Independent double-wishbone; 170mm travel|
|Suspension Rear||Swing arm with single shock; 170mm travel|
|Brakes Front||Dual hydraulic - 190mm discs|
|Brakes Rear||Single sealed - 160mm mechanical drum|
|Tyres Front||24 x 8 - 12|
|Tyres Rear||24 x 10 - 11|
|Fuel Capacity||14.7litres including 4.9litres reserve|
|Dimensions||2,104mm(L) x 1,205mm(W) x 1,174mm(H)|
|Carrier Capacity||30kg Front rack - 60kg Rear rack|
